Electrostatic Furniture Spray Paint Machine 12V 34W Powder Coating Gun Machine

Brand Name : THD

Model Number : THD002

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100set/week

Delivery Time : 5~8 workdays

Packaging Details : Carton

Type : electrostatic painting spray machine

Voltage : 110V/220V/230V/240V

Power : 34W

Size : 98*64*46mm

Usage : Spray Painting line, Surface Treatment, spraying

Oil vapor content of compressed air : <0.01g/m3

Water vapor content of compressed air : 1.3g/m3

Out Current : 1A

Maximum output voltage : 0-100KV

Product name : Electrostatic Powder Spraying Machine For Furniture Painting

Contact Now

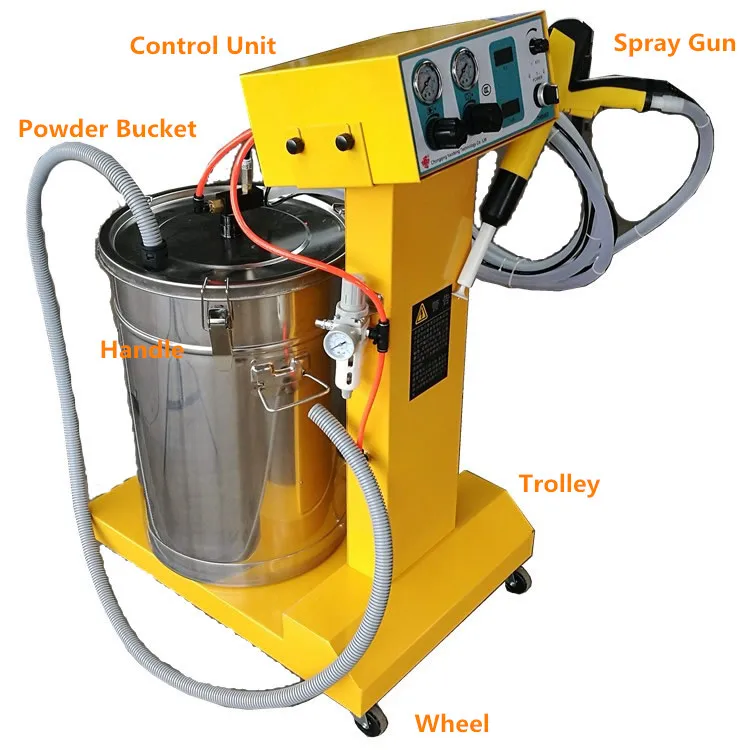

Product Name: Electrostatic Powder Spraying Machine For Furniture Painting

The spray equipment uses an automatic current feedback circuit and adds a pulse control circuit. The gas control part adopts two-stage gas source filtration, voltage regulation and air pressure adjustment, all designed as preset adjustments. The powder output is more uniform, the atomization is better, and the dead angle is much better.

The Technical Parameters

Electrostatic Powder Spraying Machine For Furniture Painting

Input Voltage	AC220V±10%
Frequency	50Hz
Input Power	34W
Output Voltage	12VDC
Out Current	1A
Maximum output voltage	0-100KV
Water vapor content of compressed air	1.3g/m³
Oil vapor content of compressed air	<0.01g/m³

Input Voltage	12V
Input current	1A
Output Voltage	0-80KV
Maximum powder injection	500g/min
Polarity	negative (-)
Gun weight	500g

Electrostatic Furniture Spray Paint Machine 12V 34W Powder Coating Gun Machine

The Features and Advantages of Electrostatic Powder Spraying Machine For Furniture Painting:

1. The workpiece can be painted at room temperature

2. High powder utilization rate, up to 95%

3. The coating film is thin and uniform, smooth and without sag

4. On the sharp edges and rough surface of the workpiece, a continuous and smooth coating can be formed.

5. Easy to realize industrialized line production

6. It is more environmentally friendly than spray-paint, but the fireproof and explosion-proof grades are slightly lower.

7. The social and economic benefits are significant, the cost is 20~30% lower than the solvent process, and the batch production cycle is shortened by 20 days.
